| price for |
|
| Negotiable |
| Product code | 29300 |
| Model | Top |
| Steel frame formwork height, cm | 132.5/265 |
| Steel frame formwork width, cm | 25/50/75/88.3/100/132.5/265 |
| Width of the universal Steel frame formwork, cm | 75/100 |
| Weight of the Steel frame formwork, kg | 35 - 426 |
| Permissible pressure from the freshly cast concrete, kN/m2 | 88 |
| Moved by hand | - |

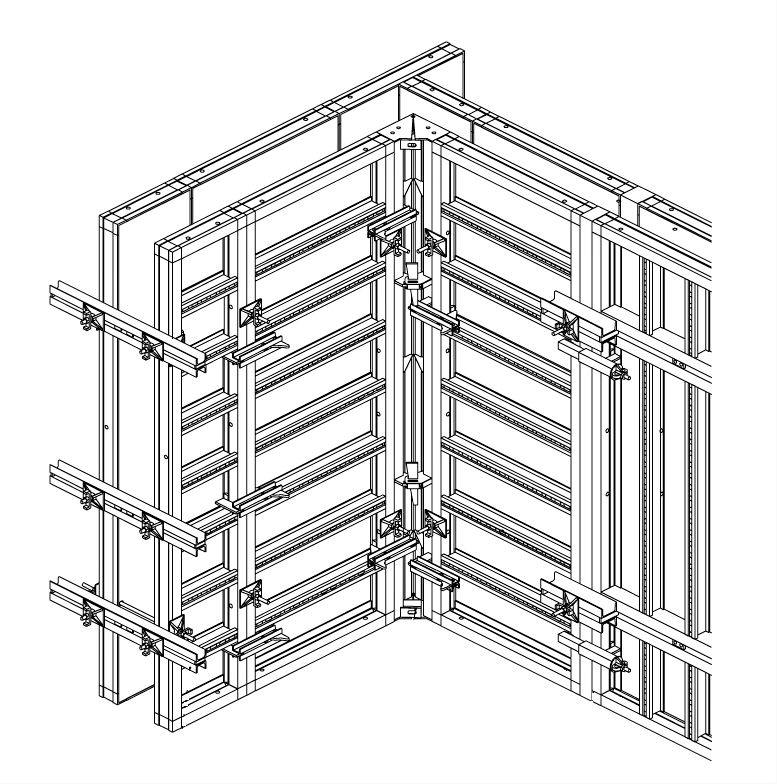

The Noe Top formwork system is mainly used for formworking of walls, columns and foundations. The sheets have a galvanized steel frame, which increases their weight and increases their load capacity. They are designed for crane operation.
This type of heavy formwork is available in several sheet sizes. This contributes to more opportunities for formworking elements of different shapes and sizes, including constructions with greater heights.
