price for |
|
150 A |
160 A |
160 A |
220 A - three-phase |
Product code | 14010 | 14020 | 14020 | 14012 |
Manufacturer | PHRONIUS | DEL | ISKRAVAR | KEMPPI |

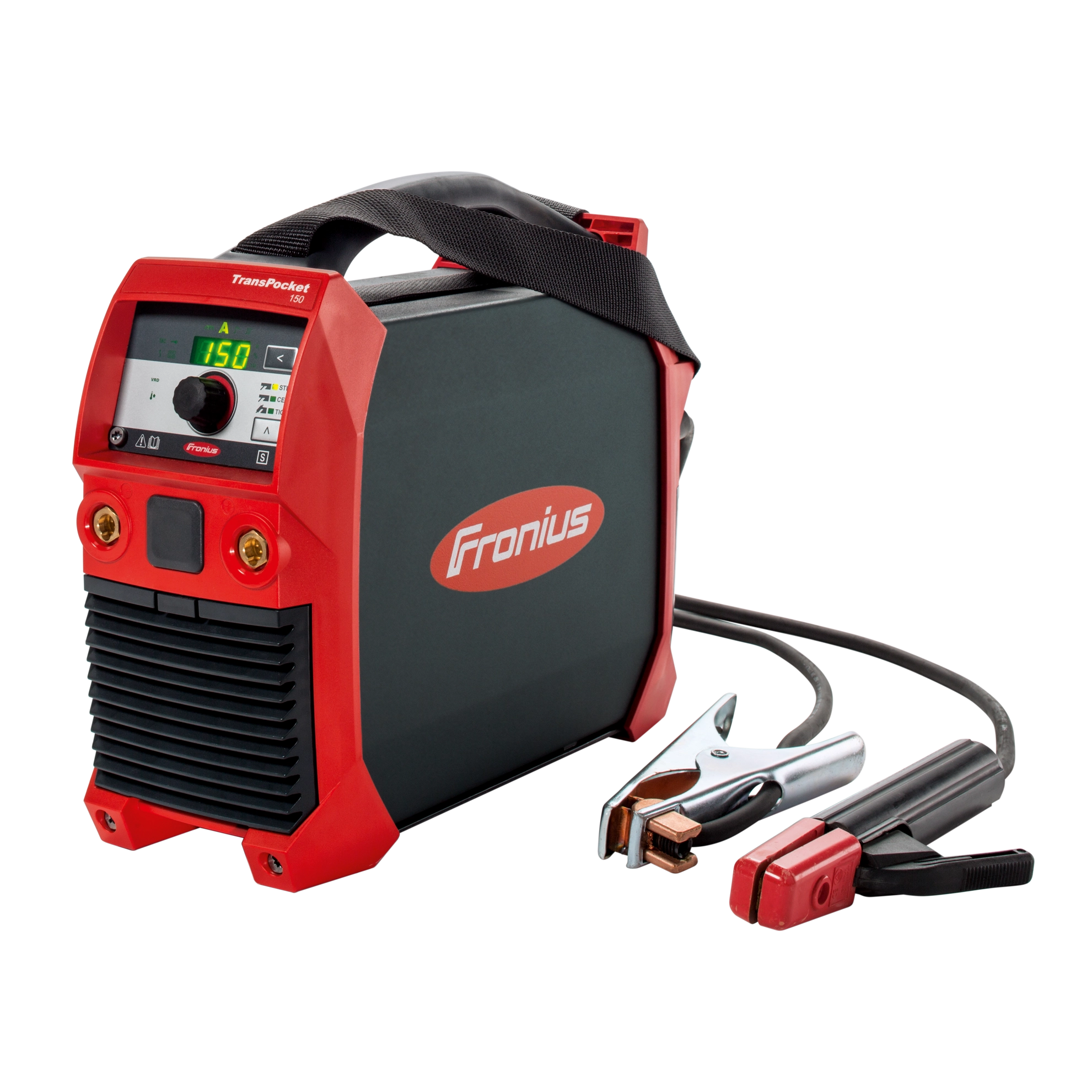

Model | TP 1500 | MMA 160 | Xenta 160 TC | Master 2200 |
N/A | 150 A Duty cycle 60% | 160 A Duty cycle 60% | 160 A duti cycle at 60% | 180 A Duty cycle 60% |
Supply voltage, V | 230 | 230 | 230 | 400 |
Supply power kVA | 6,4 | 6,4 | 6,4 | - |
Fuses, A | 16 | 25 | 16 | 10 |
Open circuit voltage, V | 92 | 60 | 60 | 85 |
Protection class | IP 21 | IP 21 | IP 21 | IP 23 |
Max. electrode size, ø | - | up to 4 | 4 | 5 |
Dimensions (L/W/H), mm | 365 x 130 x 285 | 285 x 135 x 200 | 370 x 160 x 300 mm | 400 x 180 x 340 |
Weight, kg | 4,8 | 4,2 | 8 | 9,2 |
